In-depth Kubernetes: Advanced Scheduling Techniques in Kubernetes

Kubernetes is powerful, but its default scheduling doesn't always meet complex needs. For optimal performance and reliability, you need to master advanced scheduling techniques.

Problem Statement

The default scheduler isn't enough for complex scenarios.

Learn advanced techniques like node affinity, anti-affinity, taints, custom schedulers, and resource requests to fine-tune your deployments.

Table of Contents

• Node Affinity and Anti-Affinity
• Taints and Tolerations
• Custom Schedulers
• Scheduling Based on Resource Usage
• Comparison of Advanced Scheduling Techniques in Kubernetes
• Conclusion

1. Node Affinity and Anti-Affinity

Node Affinity

This mechanism lets you express preferences or hard requirements for which nodes your pods can be scheduled on. You can target nodes based on labels, their existence within a topology domain (like a zone or region), or even custom expressions.

Example:

apiVersion: v1
kind: Pod
metadata:
  name: affinity-example
spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
        - matchExpressions:
          - key: disktype
            operator: In
            values:
            - ssd
  containers:
  - name: nginx
    image: nginx

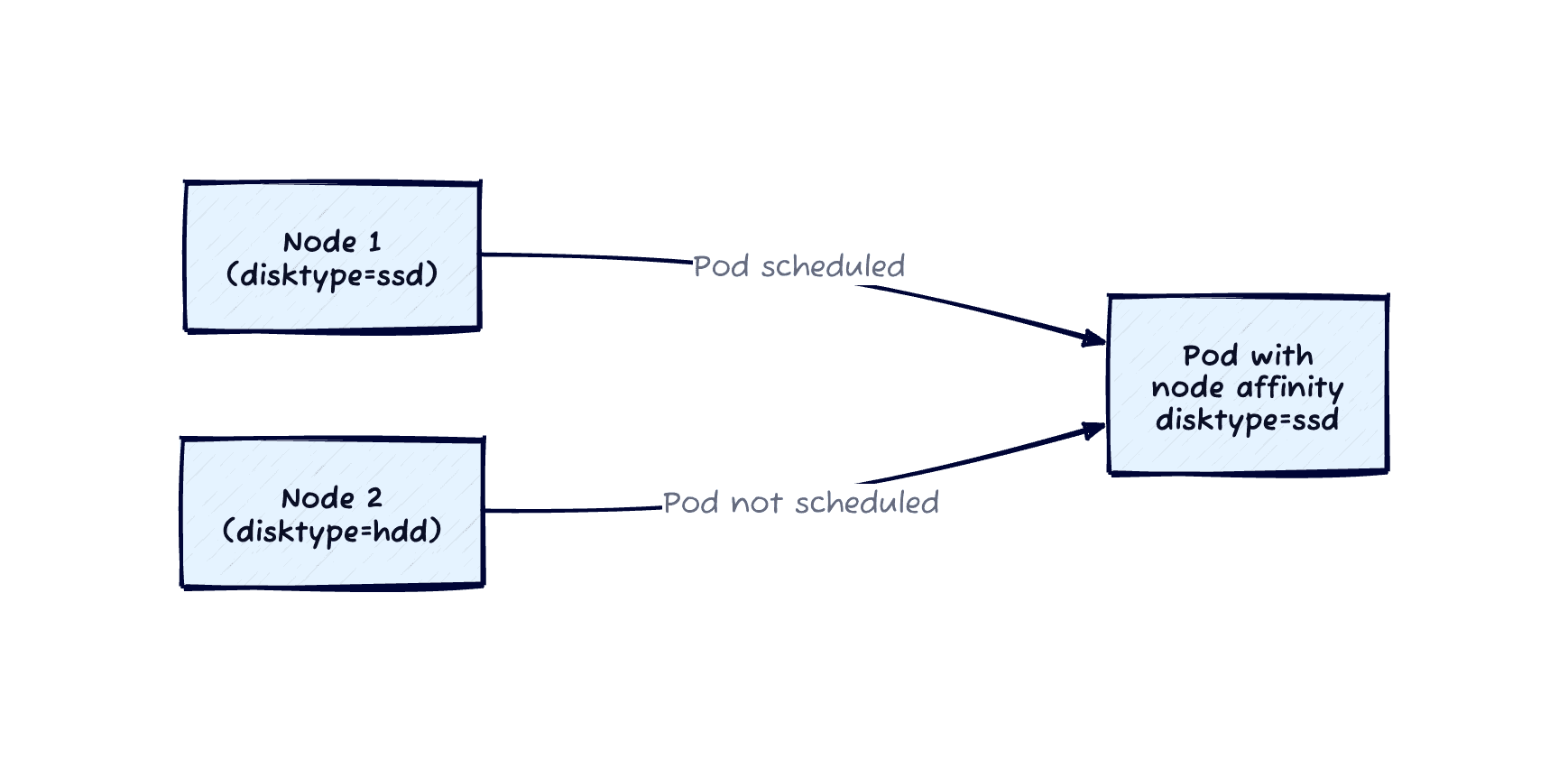

Explanation:

This pod will only be scheduled on nodes with the label disktype=ssd.

Node Anti-Affinity

The opposite of affinity, anti-affinity lets you prevent pods from being scheduled on the same node or even in the same topology domain. This is useful for ensuring high availability or for isolating specific workloads.

Example:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: anti-affinity-example
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      labels:
        app: nginx
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
          - labelSelector:
              matchExpressions:
              - key: app
                operator: In
                values:
                - nginx
            topologyKey: "kubernetes.io/hostname"
      containers:
      - name: nginx
        image: nginx

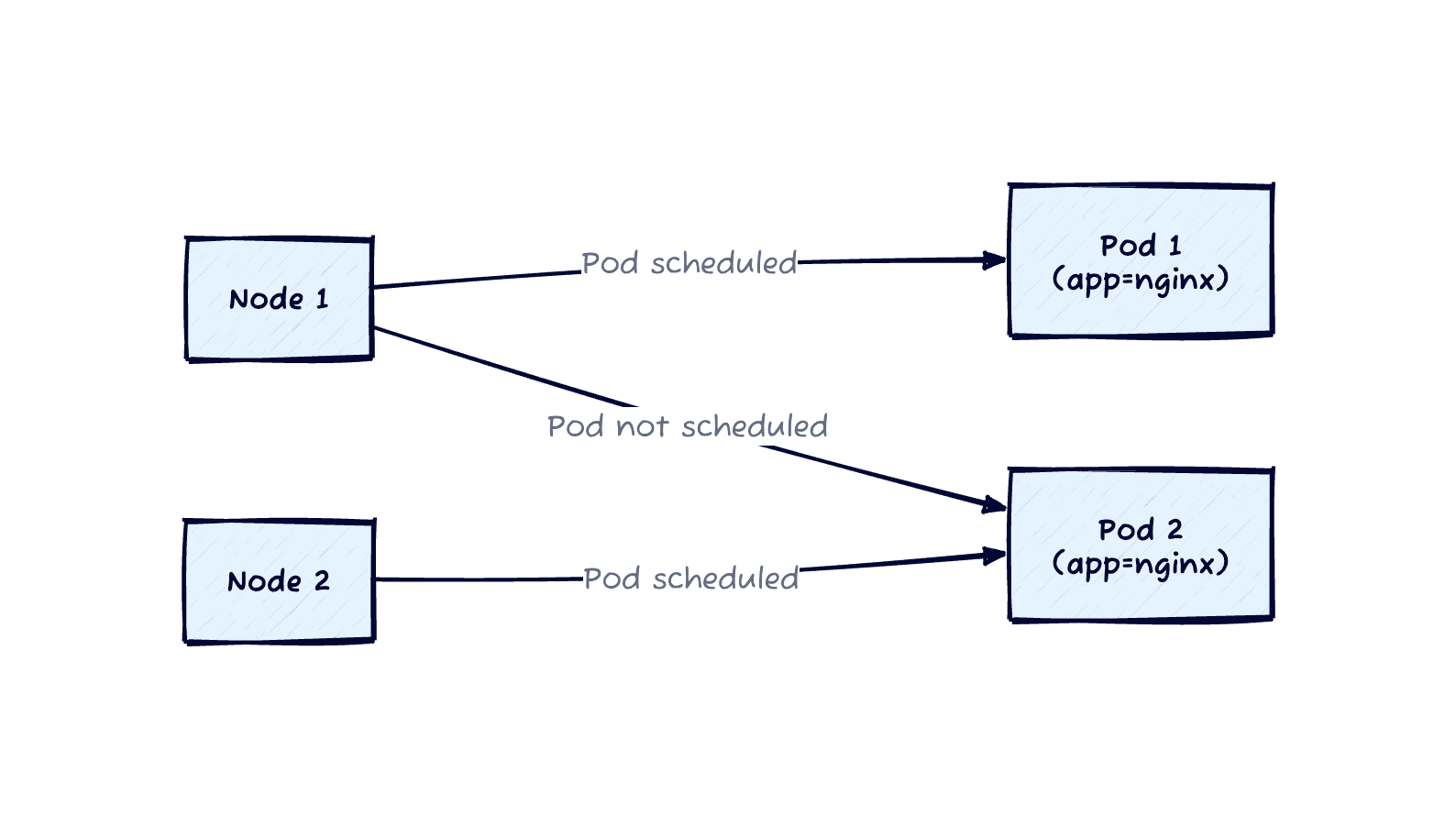

Explanation:

This deployment ensures that the nginx pods are scheduled on different nodes.

2. Taints and Tolerations

Taints and Tolerations provide a mechanism to repel pods from certain nodes unless they tolerate the taints. Taints are applied to nodes, and tolerations are applied to pods.

• Taints: Think of taints as labels you put on a node, marking it as unsuitable for certain pods. Common taints might indicate a node is dedicated to a specific type of workload, is running on specialized hardware, or is undergoing maintenance.
• Tolerations: These are the counterpart to taints. You apply tolerations to a pod's specification, indicating that it's okay for the pod to run on a node with a specific taint.

Example:

1. Add a Taint to a Node:

   # Taint the node
   kubectl taint nodes node1 key=value:NoSchedule


2. Add a Toleration to a Pod:

   # Pod specification with toleration
   apiVersion: v1
   kind: Pod
   metadata:
     name: toleration-example
   spec:
     tolerations:
       - key: 'key'
         operator: 'Equal'
         value: 'value'
         effect: 'NoSchedule'
     containers:
       - name: nginx
         image: nginx

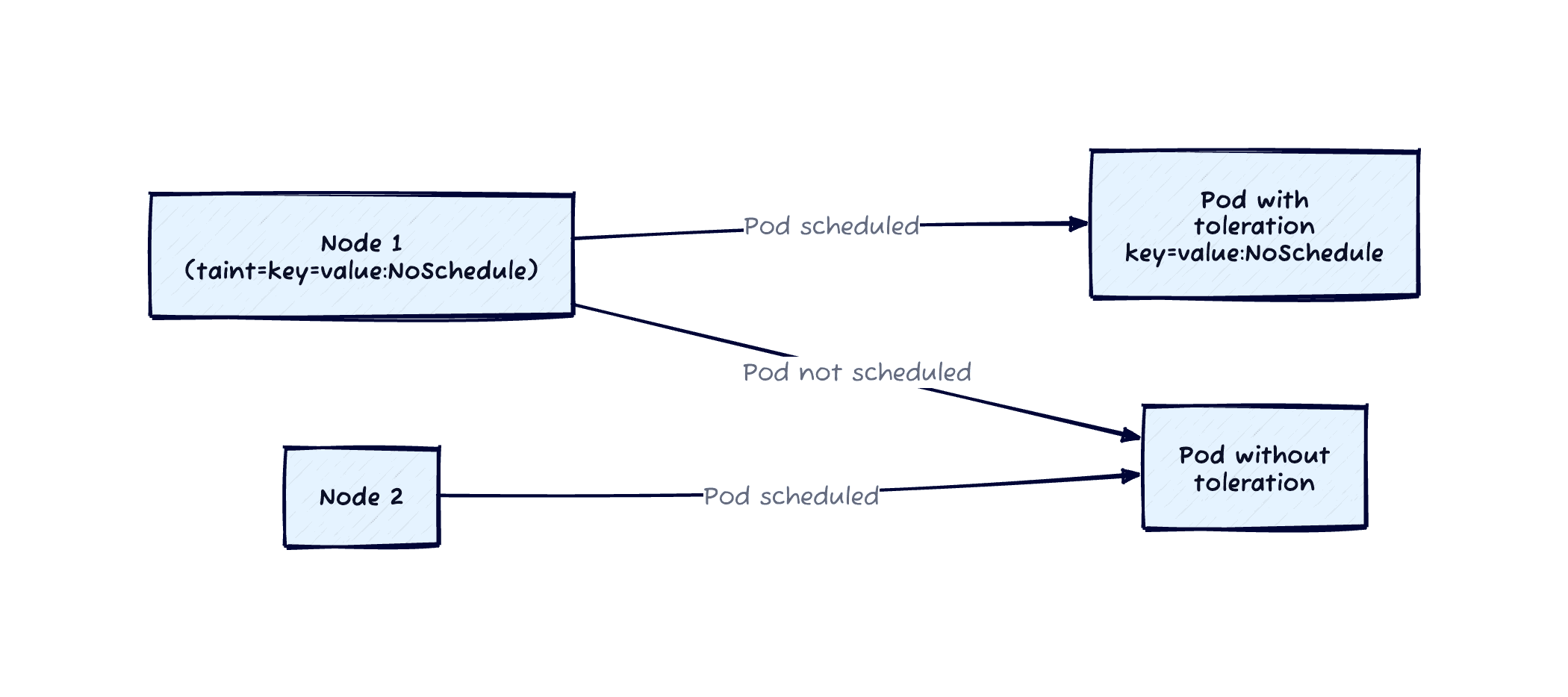

   Explanation:

   The pod will only be scheduled on nodes with the taint key=value:NoSchedule.

3. Custom Schedulers

Kubernetes allows you to create custom schedulers to implement your own scheduling logic. Custom schedulers can be used to implement specific scheduling algorithms tailored to your needs.

Example:

1. Create a Custom Scheduler:

   Create a custom scheduler container image implementing your scheduling logic.

2. Specify the Custom Scheduler in a Pod:

   apiVersion: v1
   kind: Pod
   metadata:
     name: custom-scheduler-example
   spec:
     schedulerName: my-custom-scheduler # Your custom scheduler
     containers:
       - name: nginx
         image: nginx

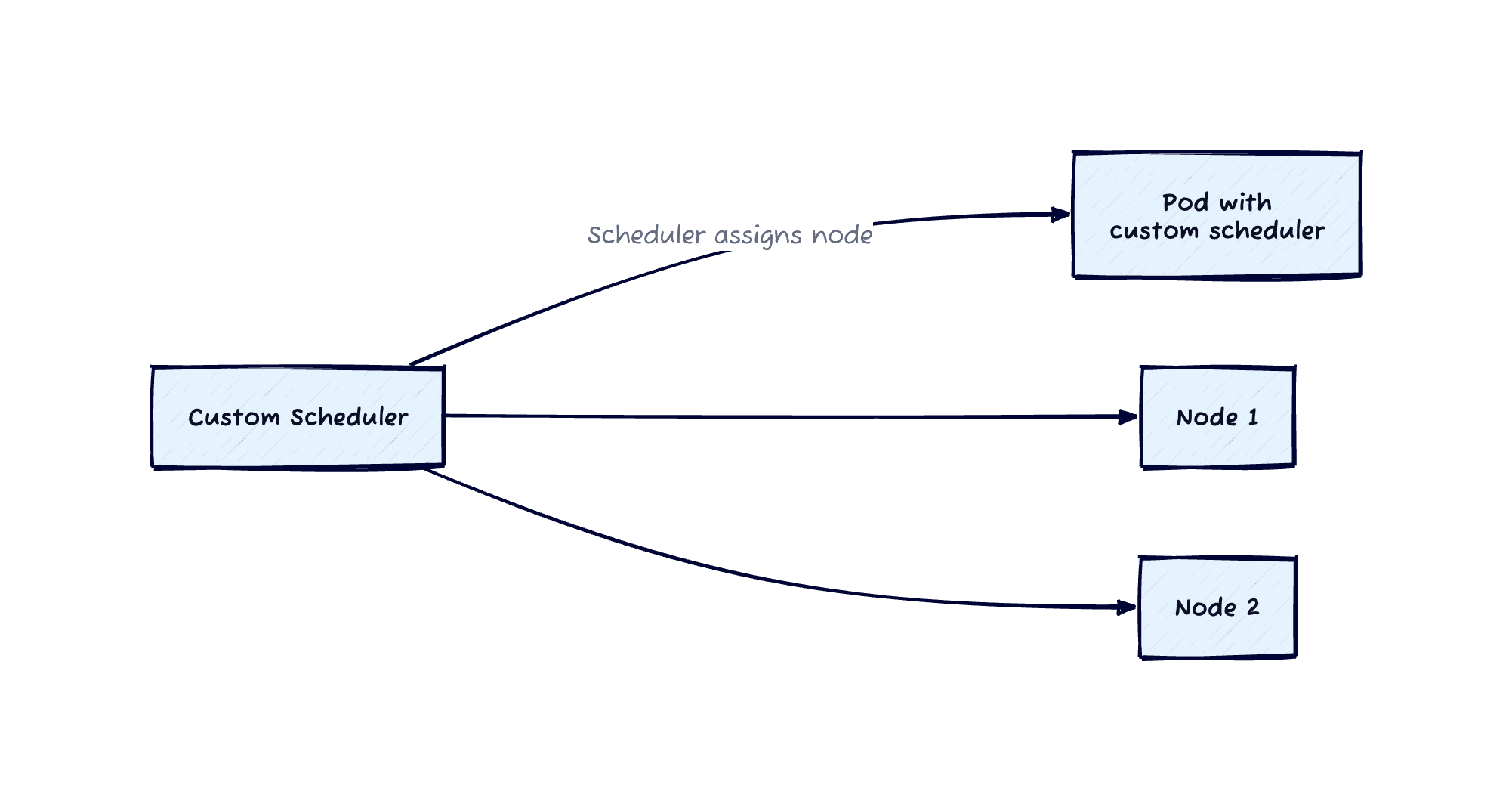

   Explanation:

   This pod will be scheduled by the custom scheduler named my-custom-scheduler.

4. Scheduling Based on Resource Usage

Kubernetes allows scheduling based on resource requests and limits to ensure balanced utilization across nodes. This can be achieved by specifying resource requests and limits in the pod specification.

Example:

apiVersion: v1
kind: Pod
metadata:
  name: resource-requests-example
spec:
  containers:
    - name: nginx
      image: nginx
      resources:
        requests:
          memory: '64Mi'
          cpu: '250m'
        limits:
          memory: '128Mi'
          cpu: '500m'

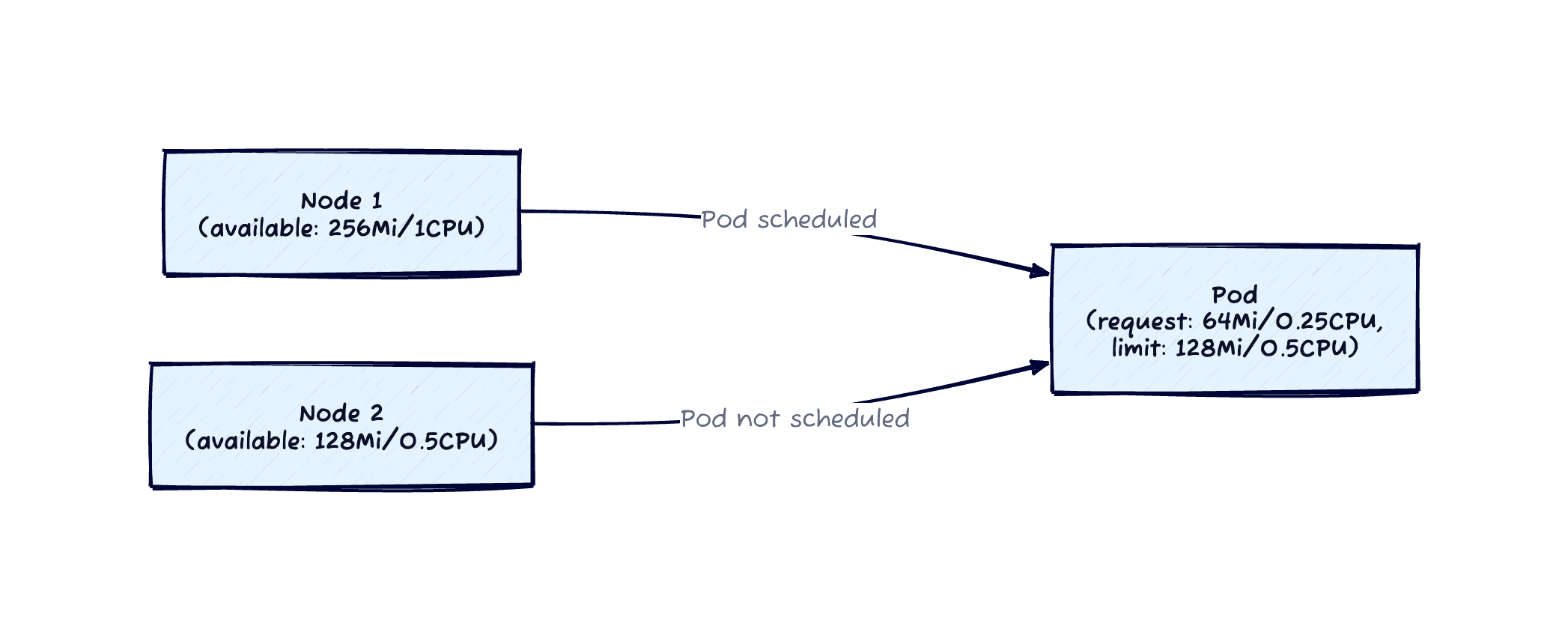

Explanation:

This pod requests a minimum of 64Mi memory and 250m CPU and can use up to 128Mi memory and 500m CPU.

Comparison of Advanced Scheduling Techniques in Kubernetes

Conclusion

Mastering advanced scheduling techniques in Kubernetes is essential for optimizing resource utilization, ensuring high availability, and meeting specific deployment requirements.

By leveraging node affinity, anti-affinity, taints, tolerations, custom schedulers, and resource requests, you can fine-tune your deployments to achieve optimal performance and reliability. Start experimenting with these advanced scheduling techniques to unlock the full potential of Kubernetes and take your deployments to the next level!

Stay tuned for the upcoming posts in our 🚀 In-Depth Kubernetes series!
